Cable Size Conductor A Numbers of Cores
Nom Area (mm2)1 1 2 3 3 1/2 4 5 7 10 12 19 27 37 48
1.5 - - 16 16 - 20s 20s 20s 20 20 25s 25 32 32
2.5 - - 20s 20s - 20s 20 20 25s 25s 25 32 32 40
4 - - 20s 20 - 20 20s 25s 25 32 32 40 - -
6 - - 20 20 - 20
10 - - 25s 20s - 25s
16 - - 20 20s - 25
25 25 - 25s 25 32 32
35 16 - 25 32 32 32
50 25 25s 32 32 40 40
70 35 25s 32 40 40 40
95 50 25 40 40 50s 50s
120 70 32 40 50s 50 50
150 70 32 50s 50s 50 50
185 185 32 50 50 63s 63
240 120 40 50 63s - 75s
300 150 40 63s 63 63 75
300 185 - - - 75 -
400 185 50s 63 75s 90s 90s
500 - 50s - - - -
630 - 50 - - - -
800 - 63s - - - -
1000 - 63 - - - -

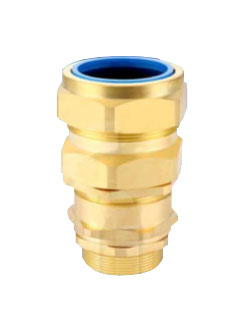

Global Metal Industries manufactures Cable glands & cable connectors for Industrial, Marine, Mining, Hazardous area installations, Explosion proof, Atex Cable glands and various other applications & Industries. We also undertake to make Explosion Proof Cable Glands and accessories under our customer’s certification. Ex Cable Gland and Accessories can be developed as per the drawings and specifications. Ex Cable Glands are also provided under kit packing and with related Accessories. Weather proof and Flame proof Cable glands are also offered as per the customized drawings.



Application:

  • Outdoor or indoor use.
  • For use with non-armoured elastomer and plastic insulated cables installed in conduit.

Features:

  • Provides a cable retention seal onto the cables outer sheath.
  • When used in increased safety applications, this cable gland may be used with braided cable where the braid and the cables outer sheath pass into the enclosure. The braid must be suitably terminated into the enclosure.
  • Provides female running coupler for cable gland or conduit entry.

Materials & Finishes:

  • The cable gland is manufactured in Brass (standard), Nickel Plated Brass.
  • Brass NPT entries are nickel plated as standard.

Technical Data:

  • Suitable for use in Zone 1, Zone 2, Zone 21 and Zone 22.
  • Suitable for use in Gas Groups IIA, IIB and IIC.
  • Operating Temperature Range: -60°C to +100°C.
